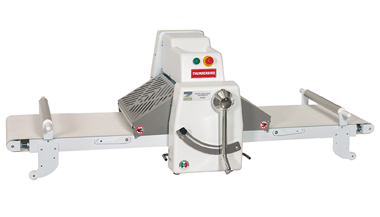

TBD-500T
Table Top
Reversible Dough Sheeter |
|
 |
- Both side safety guard
- Quick and easy setting
final thickness
- Proven synchro drive
system
- Catch trays under conveyor
- Roller scraper
- Powerful motor
- Conveyors can be hinged
up
- The smallest space required
|
|
Spec Sheet |
| Type |
Table top |
| Width of conveyor
belts |
500mm |
| Working length |
1800mm |
| Roller Length |
520mm |
| Roller gap |
40mm |
| Rated Power |
3/4HP |
| Supply Voltage |
220V.3 phase |
| Dimension (LXWXH) |
1800*900*600mm |
| Net weight |
130 KGs(286lbs) |
|
|

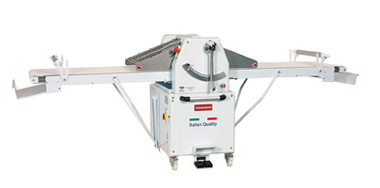

TBD-500
Floor
Reversible Dough Sheeter |
|
 |
|
|
|
Spec Sheet |
| Type |
Floor |
| Width of conveyor
belts |
500mm |
| Working length |
2100mm |
| Roller Length |
520mm |
| Roller gap |
40mm |
| Rated Power |
3/4HP |
| Supply Voltage |
220V.3 phase |
| Dimension (LXWXH) |
2100*911*1100mm |
| Net weight |
160 KGs(352lbs) |
|
|

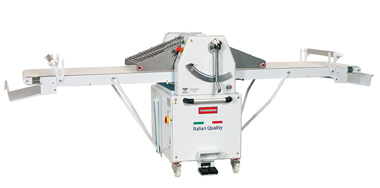

TBD-600
Same shape
as TBD-500 but roller length 650mm |
|
 |
1 hp floor model
reversible sheeter with 24" of working width
and 48" working length conveyors. Linen belt
conveyors driven at different speeds. Automatic
speed change of conveyors with change of running
direction.
Equipped with safety guard. Easy to dismantle
for cleaning, no tool required. Rollers and
folding conveyors make for easy mobility and
storage. |
|
Spec Sheet |
| Type |
Floor |
| Width of conveyor
belts |
600mm |
| Working length |
2500mm |
| Roller Length |
650mm |
| Roller gap |
40mm |
| Rated Power |
1HP |
| Supply Voltage |
220V.3 phase |
| Dimension (LXWXH) |
2500*1030*1100mm |
| Net weight |
200 KGs(400lbs) |
|
¡@
|
